7 Section Nut Former Machine

Features:
- Annealed body and basic, forged components are free from residual stress, which are sturdy, durable and stable when in operation.
- One-piece-formed main slide is made of alloy steel imported from Europe. Tolerance of micro-adjustable protecting plate:0.015-0.02mm. --Cast iron protecting plate, with 2-3hand-carved grooves on the surface, is well-lubricated, heat-dissipated and wear-resistant to protect main slide. --High-precision main slide features stable and high capacity. Equipped with wear-resistant punches and dies, this model is durable and cost-efficient.
- The HRC60, hard chrome-plated crankshafts on both sides of the nut former and main spindle in the center are made of alloy brass, which are durable, impact-proof, heavy-duty, and wear-resistant.
- Well-organized punch table are easy to adjust and can be adjusted separately from left to right, up and down. Even an inexperienced operator can easily adjust/replace dies/punches.
- Front kick-out mechanism is easy-t0-operate and its movement can easily be synchronized with the reversing movement of main slide, which keeps work pieces in the dies.
- The round, clean-cut section is vertical to feeding mechanism and cooperates with the forming process. Meanwhile, a non-reversible bearing is installed in the feeding mechanism to prevent material reversing, ensuring the stability of feeding mechanism.
- Quick-change nut-clipping table and clip piece-positioning mechanism, plus adjustable lid on the shaft of clip pieces enhance nut former capacity.
- Automatically controlled devices:
- Overload ammeter
- Material running-out detection
- Product quantity-presetting detection
- Kick-out detection
- Lubricant shortage detection
- Engine overheat detection
- LCD RPM display
- LCD interface control (optional)
- Highly efficient motor, converter installation is optional

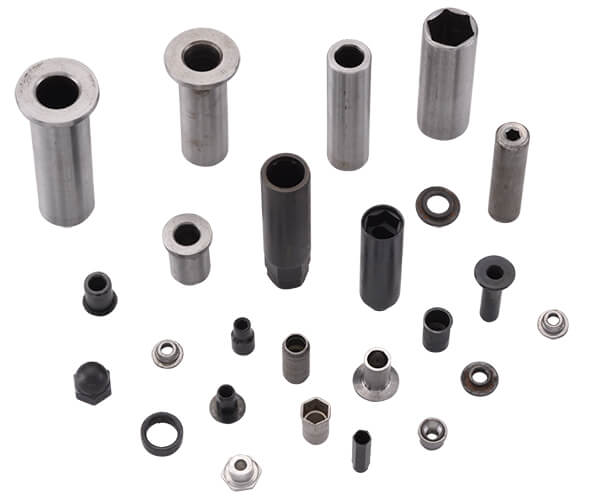

Products made with 7-die long-stroke nut shapers and tube shapers
Features:

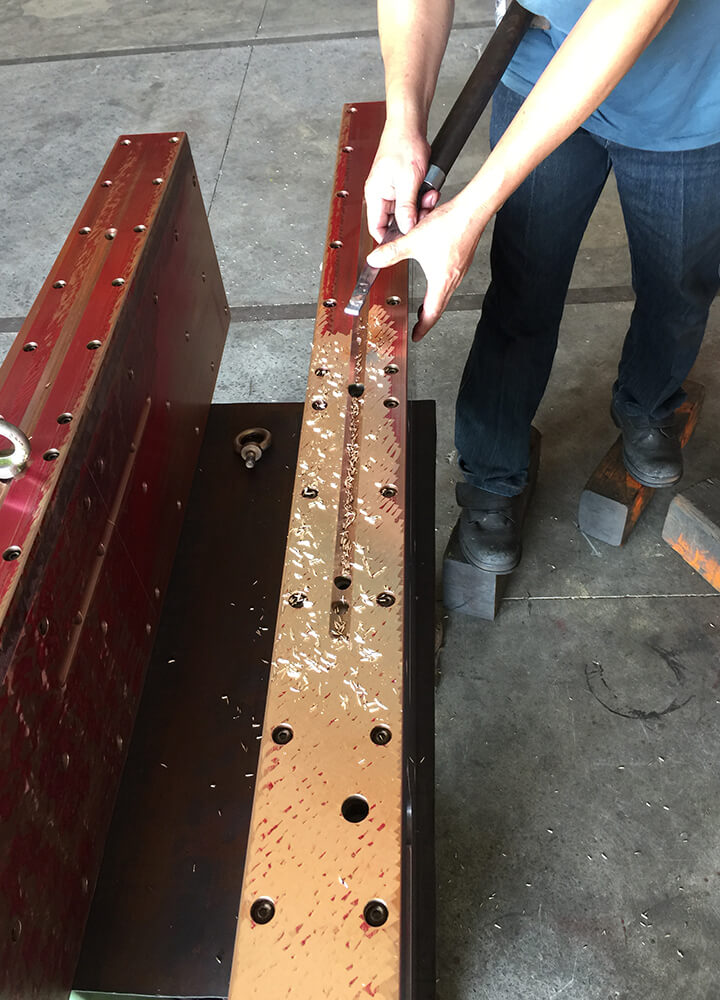

The whole major slider is folded

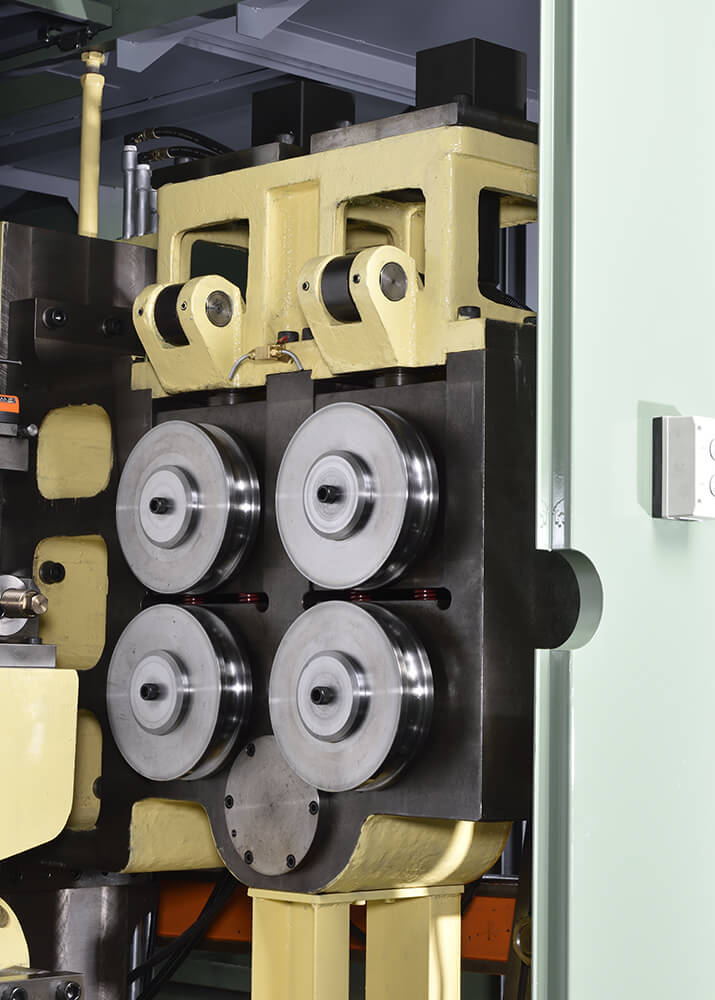

Hydraulic feeding roller table

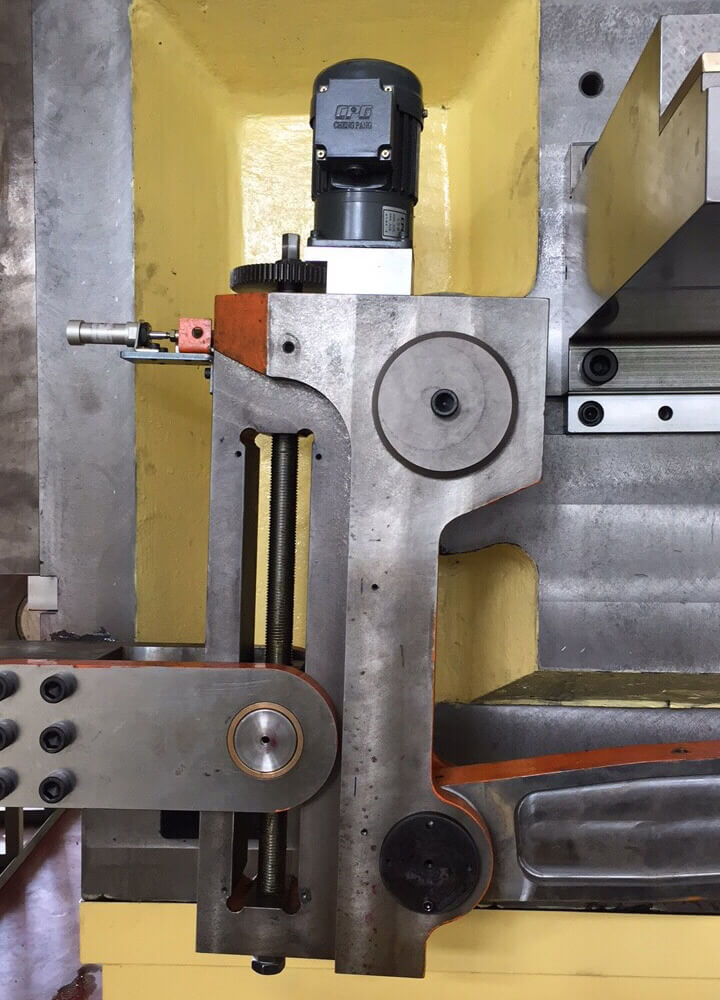

Electrical rocker arm of feeding

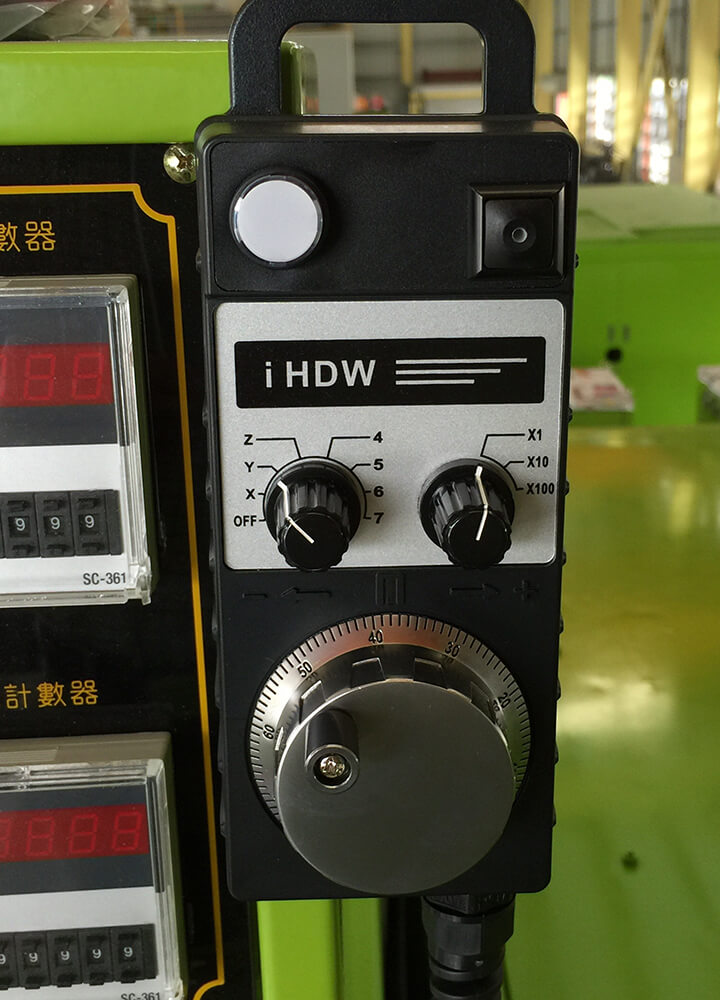

Adjustable micro switch of inverter

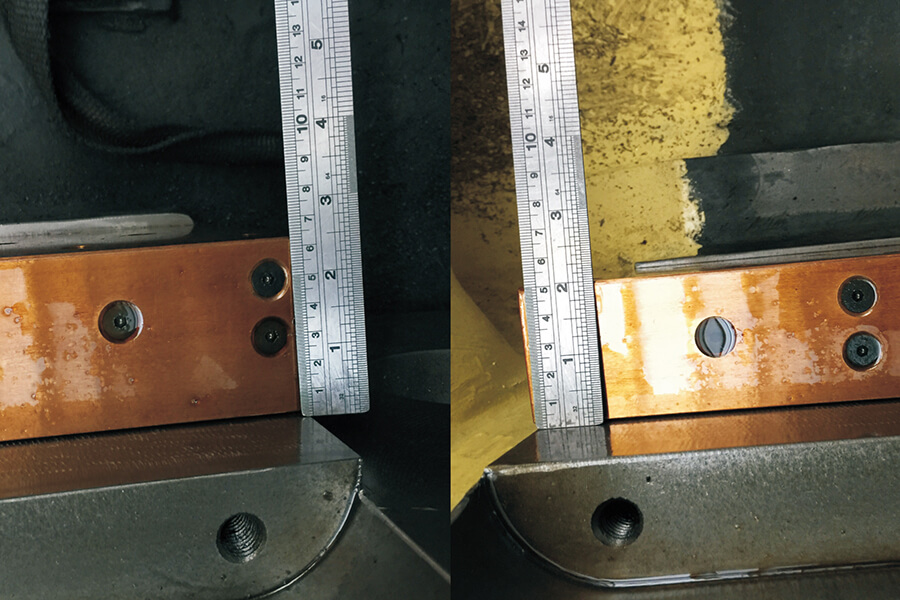

Adjustable major slider tolerance

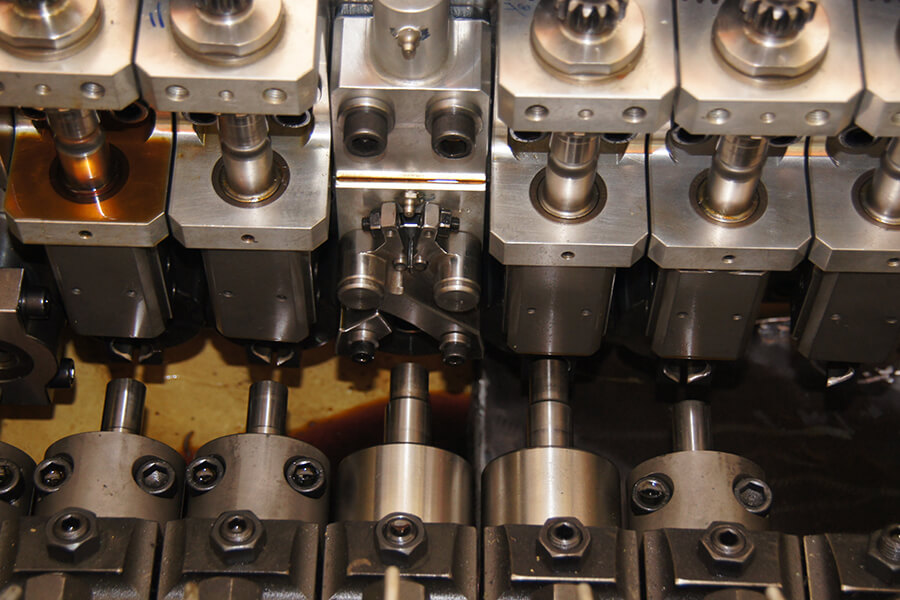

Universal clip: female clip automatic open

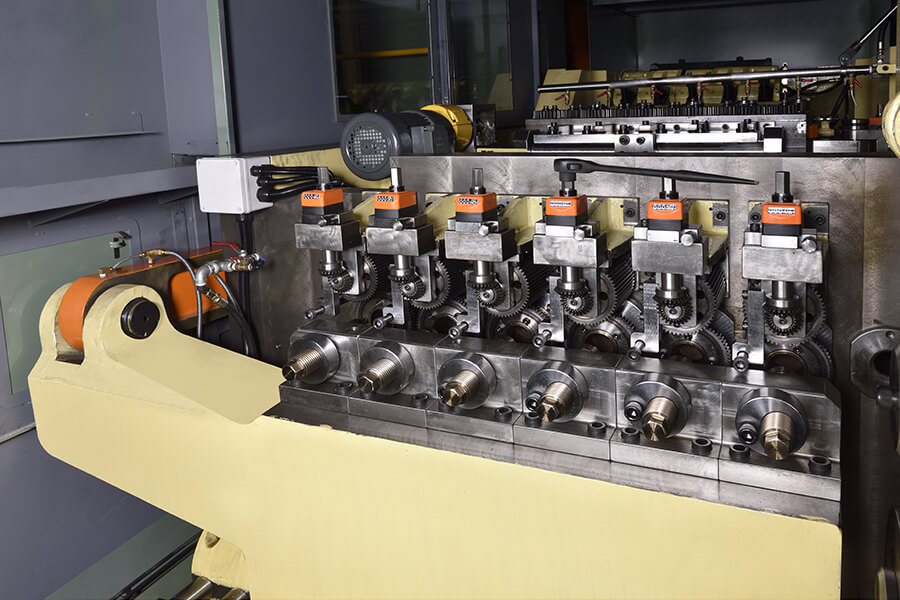

KO handwheel disply

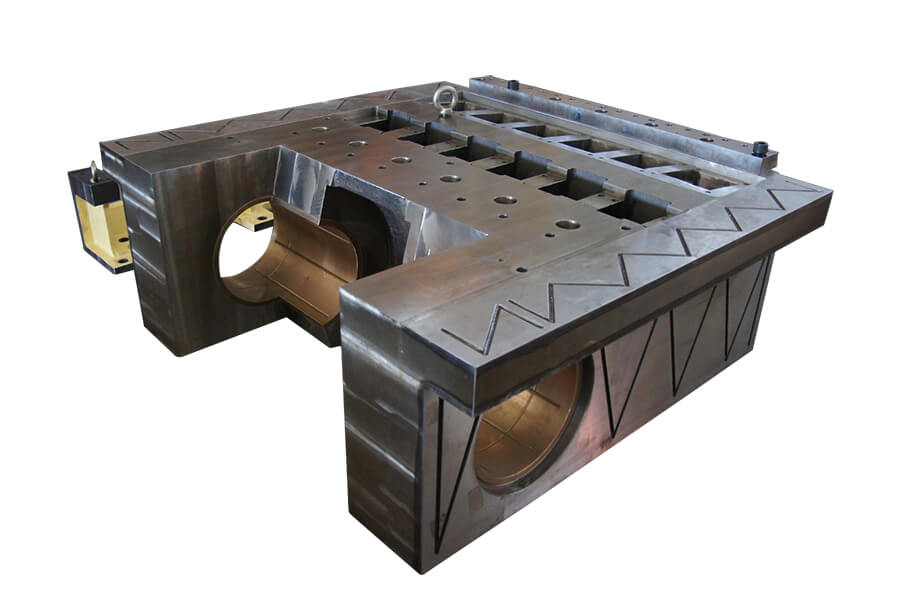

Major slider made by steel with high-frequency treatment on surface

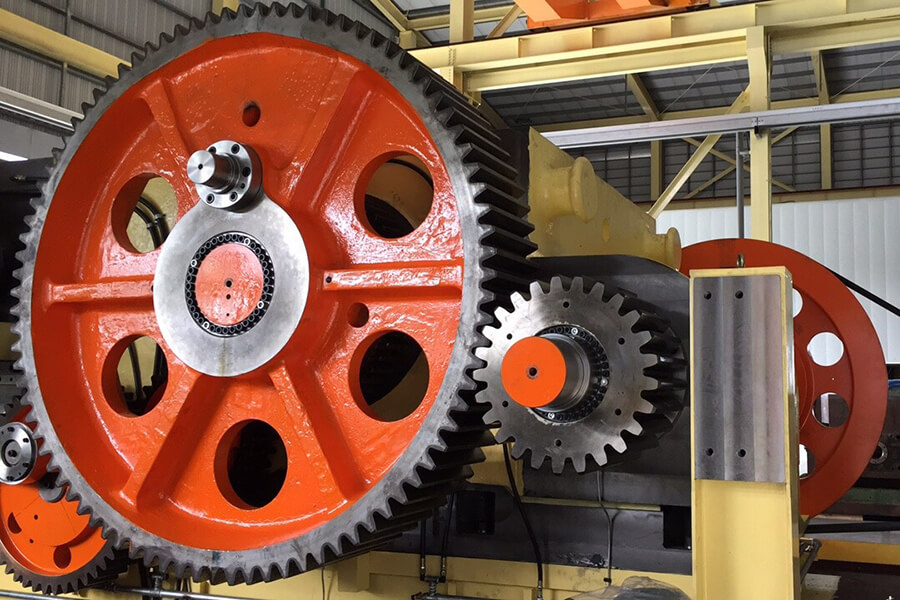

Gear of back shaft

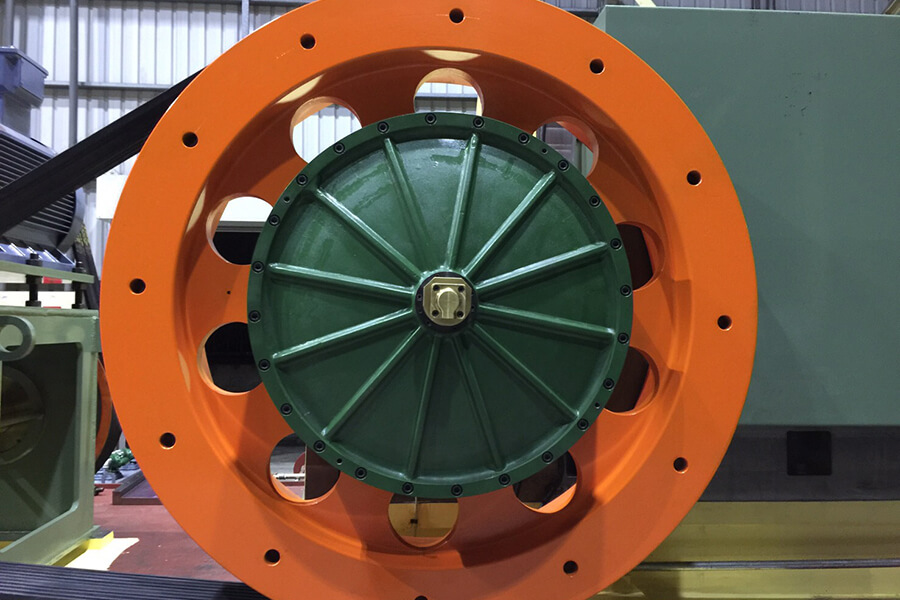

Break Clutch

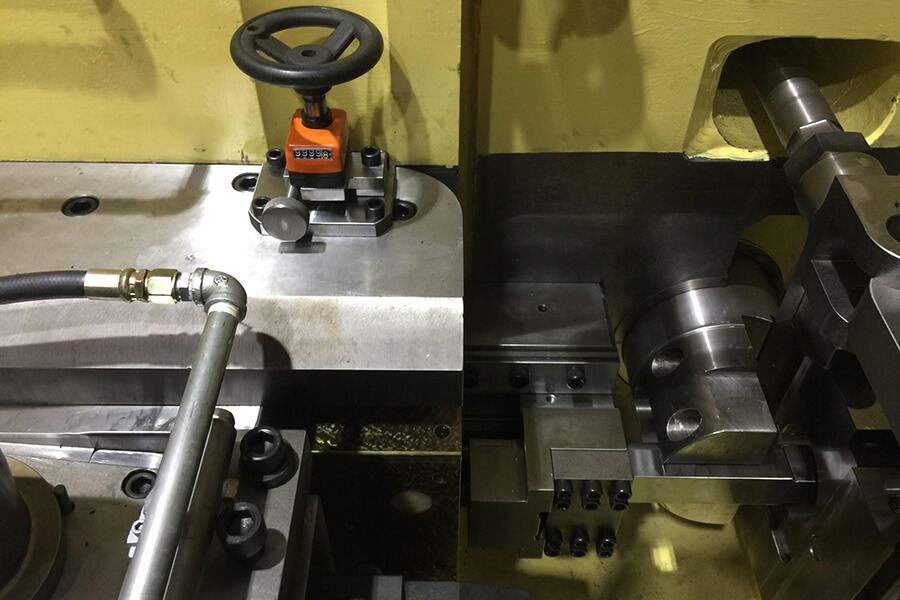

Handwheel adjustment stopper
Specification:
7 Section Nut Former Machine - SL Series
SPCIFICATION / MODEL | FORGING STATION | CUT-OFF DIA. MAX. (MM) | CUT-OFF LENGTH MAX. (MM) | P.K.O. LENGTH MAX. (MM) | KICK-OUT LENGTH MAX. (MM) | CUT-OFF QUILL (DxL) (MM) | MAIN DIE HOLE (DxL) (MM) | DIES PITCH (MM) | PUNCH HOLE (DxL) (MM) | RAM STROKE (MM) | FORGING POWER (TON) | PRODUCTS SPECIFICATION | NUT | MAX. OUTPUT (PCS / MIN) | MAIN MOTOR (HP) | LUBRICANT MOTOR (HP) | COOLANT MOTOR (HP) | LUBRICANT OIL (L) | COOLANT OIL (L) | AIR PRESSURE (KG/CM) | APPROX. WT. (TON) | MACHINERY SIZE (M) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11B-7SL | 7 | 12 | 25 | 10 | 30 | 27×30 | 40×40 | 50 | 30×73 | 90 | 55 | Φ12×28 | M5 | 150 | 20 | 1 | 0 | 150 | 80 | 4 | 6 | 3.0×1.75×1.3 |
14B-7SL | 7 | 16 | 45 | 14 | 48 | 35×40 | 50×60 | 60 | 40×120 | 150 | 100 | Φ16×45 | M8 | 130 | 40 | 1 | 0 | 150 | 100 | 4 | 12 | 3.8×2.0×1.5 |
19B-7SL | 7 | 22 | 65 | 19 | 68 | 47×40 | 65×80 | 78 | 55×160 | 200 | 200 | Φ20×65 | M12 | 100 | 65 | 1 | 1 | 200 | 150 | 4 | 24 | 5.1×2.7×1.96 |
24B-7SL | 7 | 27 | 80 | 24 | 85 | 58×60 | 85×100 | 100 | 70×195 | 240 | 300 | Φ27×80 | M16 | 65 | 125 | 2 | 1 | 350 | 150 | 5 | 42 | 6.1×3.5×2.3 |
32B-7SL | 7 | 33 | 90 | 32 | 95 | 78×70 | 105×110 | 126 | 80×210 | 280 | 550 | Φ33×90 | M24 | 60 | 175 | 2 | 1 | 350 | 200 | 5 | 70 | 7.6×4.2×2.6 |
* We Reserve The Right To Change The Designs & Specifications Without Notice.
7 Section Nut Former Machine - S Series
SPCIFICATION / MODEL | FORGING STATION | CUT-OFF DIA. MAX. (MM) | CUT-OFF LENGTH MAX. (MM) | P.K.O. LENGTH MAX. (MM) | KICK-OUT LENGTH MAX. (MM) | CUT-OFF QUILL (DxL) (MM) | MAIN DIE HOLE (DxL) (MM) | DIES PITCH (MM) | PUNCH HOLE (DxL) (MM) | RAM STROKE (MM) | FORGING POWER (TON) | PRODUCTS SPECIFICATION | NUT | MAX. OUTPUT (PCS / MIN) | MAIN MOTOR (HP) | LUBRICANT MOTOR (HP) | COOLANT MOTOR (HP) | LUBRICANT OIL (L) | COOLANT OIL (L) | AIR PRESSURE (KG/CM) | APPROX. WT. (TON) | MACHINERY SIZE (M) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11B-7S | 7 | 12 | 18 | 10 | 20 | 27×30 | 40×40 | 50 | 30×73 | 60 | 50 | Φ12×18 | M5 | 150 | 15 | 1 | 0 | 150 | 80 | 4 | 5.5 | 3.0×1.75×1.3 |
14B-7S | 7 | 16 | 25 | 14 | 27 | 35×40 | 50×60 | 60 | 40×120 | 90 | 95 | Φ16×25 | M8 | 140 | 30 | 1 | 0 | 150 | 100 | 4 | 10.5 | 3.8×2.0×1.5 |
19B-7S | 7 | 22 | 35 | 19 | 37 | 47×40 | 65×80 | 78 | 55×160 | 120 | 180 | Φ20×35 | M12 | 110 | 50 | 1 | 1 | 200 | 150 | 4 | 20 | 5.1×2.7×1.9 |
24B-7S | 7 | 27 | 48 | 24 | 50 | 58×60 | 85×100 | 100 | 70×195 | 150 | 280 | Φ27×48 | M16 | 80 | 100 | 2 | 1 | 350 | 150 | 5 | 40 | 5.7×3.5×2.3 |
32B-7S | 7 | 33 | 55 | 32 | 57 | 78×70 | 105×110 | 126 | 80×210 | 160 | 480 | Φ33×55 | M24 | 70 | 150 | 2 | 1 | 350 | 200 | 5 | 68 | 7.4×3.9×2.6 |
